ASRock X570S PG Riptide AMD ATX Motherboard

21,700.00৳

  • Brand: ASRock
  • Model: ASRock X570S PG Riptide
  • Supported CPU: AMD AM4 Socket CPU
  • Supported Memory: DDR4 Up To 5000+ (OC)
  • Max Memory: 128GB
  • Supported Sockets: AM4
Compare
Add to wishlist
Category:
Product Specifications
Basic Information
Supported CPUSupports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors
Digi Power design
10 Power Phase design
ChipsetAMD X570
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake-up events
Supports jumperfree
SMBIOS 2.3 support
CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Form FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Solid Capacitor design
2oz Copper PCB
Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection
Gold Audio Jacks
Nahimic Audio
CPU
Chipset BrandAMD
ChipsetAMD X570
Supported SocketsAM4
Graphics
GraphicsIntegrated AMD Radeonâ„¢ Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with HDMI 2.1 Port
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
Supports Microsoft® PlayReady
**Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Memory
TypeDual Channel DDR4 Memory Technology
Slots4 x DDR4 DIMM Slots
Supported Memory- AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
Maximum Memory128GB
Storage
Storage Interface6 x SATA3 6.0 Gb/s Connectors
SSD Expansion Slot2 x SSD Expansion Slot
Expansion Slots
PCIAMD Ryzen series CPUs (Vermeer, Matisse)
- 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*
AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1)*
AMD Ryzen series APUs (Picasso)
- 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*
AMD X570 Chipset
- 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6))
- 3 x PCI Express 4.0 x1 Slots
- Supports AMD Quad CrossFireXâ„¢ and CrossFireXâ„¢
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
M.2 Socket1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
* If M2_2 is occupied by a PCI-E-type M.2 device, SATA3_5_6 will be disabled.
If Thunderboltâ„¢ support is enabled, SATA type M.2 will be disabled.
Supports NVMe SSD as boot disks* Supports ASRock U.2 Kit
Connector & Ports
HDMI1 x HDMI Port
USB (s)1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)2.5 Gigabit LAN 10/100/1000/2500 Mb/s
1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
Supports Killer LAN Software
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O Ports1 x Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x Optical SPDIF Out Port
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Button with LED
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.
Network & Connectivity
LAN ChipsetKiller E3100G
LAN Speed (Mbps)2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Technical Info
CrossFire SupportYes
Raid SupportSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
RGB SupportYes
Form FactorATX
Bios Type256Mb AMI UEFI Legal BIOS with GUI support
Bios ModelAMI UEFI Legal BIOS
Additional Info
OthersSoftware and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Killer LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Graphics Card Holder
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- CEC Tier II ready
Warranty Information
Manufacturing Warranty03 Years
Description

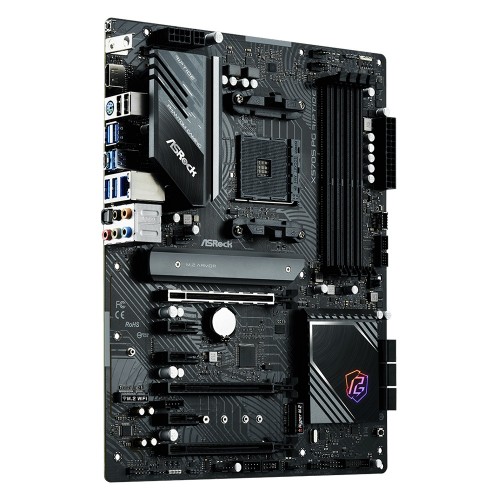

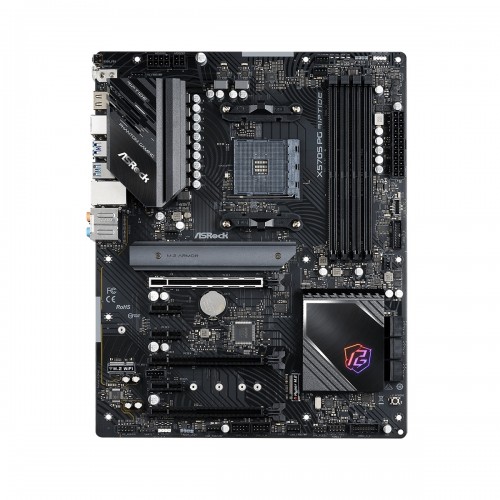

ASRock X570S PG Riptide AMD ATX Motherboard

The ASRock X570S PG Riptide AMD AM4 ATX Motherboard Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, and 5000 Series Desktop Processors. The next-generation PCI Express 4.0 is capable of performing twice the speed compared to the previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points is revolutionary added to ensure signal stability and also make sure heavy graphics cards are well-installed in the PCI-E slot safely. Supports the next-generation PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. This motherboard features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique. Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allowing you to have a stunning data transfer experience. Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and can deliver the ultimate network. It has 3 years of warranty.

What is the ASRock X570S PG Riptide AMD ATX Motherboard Price In Bangladesh?

The latest price of the ASRock X570S PG Riptide AMD ATX Motherboard is 21,700৳ in Bangladesh. Order online OR visit our showrooms to buy the ASRock X570S PG Riptide Motherboard at the best price in BD.
