Basic Information
| Supported CPU | Supports Intel 11th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 10th Gen Core i9, i7, i5, i3 & Pentium Processors 14 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology Supports Intel K-Series unlocked CPUs |
| Chipset | Intel Z590 |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake-up events SMBIOS 2.7 Support |
| Form Factor | ATX 2oz Copper PCB |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
CPU
| Chipset Brand | Intel |
| Chipset | Intel Z590 |
| Supported Sockets | LGA1200 |
Graphics
| Graphics | Intel 11th Gen Core Processors support Intel Xe Graphics Architecture Intel 10th Gen Core Processors support Gen 9 Graphics |
Memory
| Type | DDR4 |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory | Intel 11th Gen Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC); Intel 10th Gen Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC); Intel Extreme Memory Profile (XMP) 2.0 Supports ECC UDIMM memory modules 15μ Gold Contact in DIMM Slots |
| Maximum Memory | 128GB |
| Memory MHz | Up to 4800+(OC) |
Storage
| Storage Interface | 6x SATA 3 6.0 Gb/s Connectors |
| SSD Expansion Slot | 1x Hyper M.2 supports Socket M Key type 2260/2280 M.2 PCI Express module up to Gen4 (64 Gb/s) (Works With 11th Gen Intel Core processors only) 1 x Ultra M.2 supports Socket M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x Ultra M.2 supports Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
Expansion Slots
| PCI | 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE4)) 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE4)) CPU Direct Source LAN On: 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x8 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x4 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x4 (PCIE3) / Gen3x4 (PCIE4)) 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x8 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x4 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x4 (PCIE3) / Gen3x4 (PCIE4)) - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| M.2 Socket | 1x Hyper M.2 supports Socket M Key type 2260/2280 M.2 PCI Express module up to Gen4 (64 Gb/s) (Works With 11th Gen Intel Core processors only) 1 x Ultra M.2 supports Socket M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x Ultra M.2 supports Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |

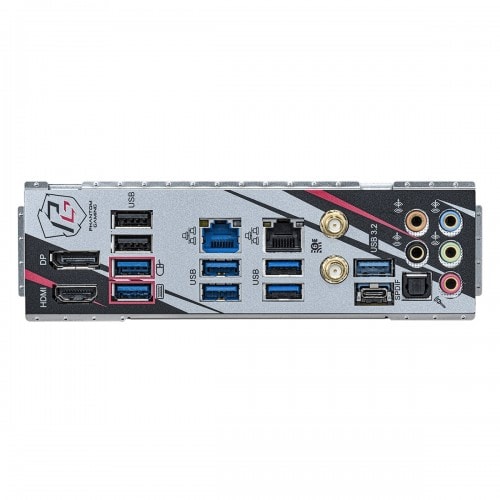

Connector & Ports
| HDMI | Yes |
| USB (s) | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1042A) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Type-A Ports (Intel Z590) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) |
| LAN Port (s) | 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) Supports Killer LAN Software Supports Killer DoubleShotTM Pro Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE 1x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Supported Storage | 6x SATA3 6.0 Gb/s Connectors 3x M.2 Socket |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection Pure Power-In Direct Drive Technology PCB Isolate Shielding Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Gold Audio Jacks 15μ Gold Audio Connector Nahimic Audio |
Network & Connectivity
| LAN Chipset | Killer E3100G |
| LAN Speed (Mbps) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | IEEE 802.11a/b/g/n/ax |
Technical Info
| CrossFire Support | Yes |
| Raid Support | Yes |
| RGB Support | Yes |
| RGB Connector | Yes |
| Form Factor | ATX |
| Bios Type | 128Mb AMI UEFI Legal BIOS |
| Bios Model | AMI UEFI Legal BIOS |
| Bios Version | ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support |
Additional Info
| Others | Killer AX1675x 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 + High-speed class II Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot Pro |
Warranty Information
| Manufacturing Warranty | 03 years |
