Basic Information
| Supported CPU | Supports Intel 10th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 11th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel® 14 nm CPU Supports Intel Turbo Boost Technology 2.0 Supports Intel Turbo Boost Max Technology 3.0 **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types |
| Chipset | Intel H410 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
| Audio | Realtek® ALC887 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
CPU
| Chipset Brand | Intel |
| Chipset | Intel H410 |
| Supported Sockets | L1200 |
Graphics
| Graphics | Integrated Graphics Processor- Intel® UHD Graphics support 1 x HDMI 1.4b 1 x D-Sub *Graphics specifications may vary between CPU types |
Memory
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
| Memory MHz | Up to 2666 |
Storage
| Storage Interface | 4 x SATA 6Gb/s ports |
| SSD Expansion Slot | 1 x M.2 SSD Expansion Slot |
Expansion Slots
| PCI | 16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCI-E mode) |

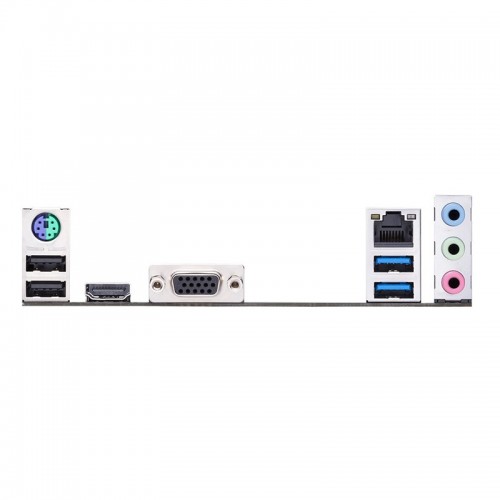

Connector & Ports
| HDMI | 1 x HDMI and 1 x D-Sub(VGA) |
| USB (s) | 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 |
| LAN Port (s) | 1 x LAN (RJ45) port(s) |
| Audio | 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
Network & Connectivity
| LAN Chipset | Realtek |
| LAN Speed (Mbps) | RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard |
Technical Info
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
| Bios Type | 128 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
Additional Info
| Others | Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS 5X PROTECTION III - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-Slot Accessories User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
Warranty Information
| Manufacturing Warranty | 03 Years |
