Basic Information
| Supported CPU | Supports Intel 11th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 10th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel Turbo Boost Technology 2.0 Supports Intel Turbo Boost Max Technology 3.0** ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H510 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | microATX 22.6cm x 20.3cm |
| Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
CPU
| Chipset Brand | Intel |
| Chipset | Intel H510 |
| Supported Sockets | LGA1200 |
Graphics
| Graphics | *Graphics specifications may vary between CPU types. ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. |
Memory
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
| Memory MHz | Up to 3200(OC) |
Storage
| Storage Interface | 4 x SATA 6Gb/s ports |
| SSD Expansion Slot | 1 x SSD Expansion Slot |
Expansion Slots
| PCI | Intel 11 & 10 Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11 Gen processors support PCIe 4.0 x16 - Intel 10 Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot |
| M.2 Socket | M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) **The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used. |

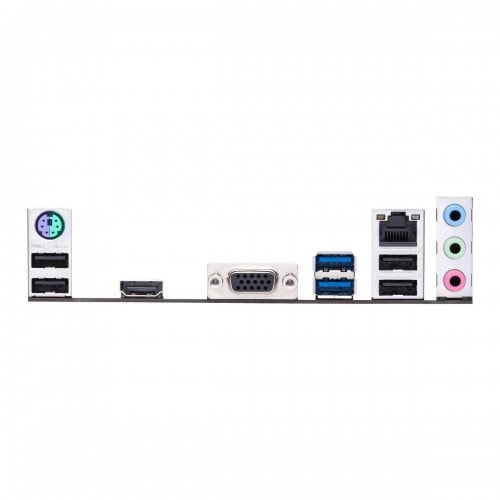

Connector & Ports
| HDMI | 1 x HDMI 1.4 |
| USB (s) | Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet ASUS LANGuard |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related - 1 x 4-pin CPU Fan header - 1 x 4-pin Chassis Fan header Power related - 1 x 24-pin Main Power connector - 1 x 8-pin +12V Power connector Storage related - 1 x M.2 slot (Key M) - 4 x SATA 6Gb/s ports USB - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous - 1 x RGB header - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (AAFP) - 1 x S/PDIF Out header - 1 x Speaker header - 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
Network & Connectivity
| LAN Chipset | Intel |
| LAN Speed (Mbps) | 1Gb Ethernet |
Technical Info
| Form Factor | Micro-ATX |
| Bios Type | 128 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
Additional Info
| Others | **Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header **Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode **Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Installation Media 1 x Support DVD Documentation 1 x User manual |
Warranty Information
| Manufacturing Warranty | 03 Years |
