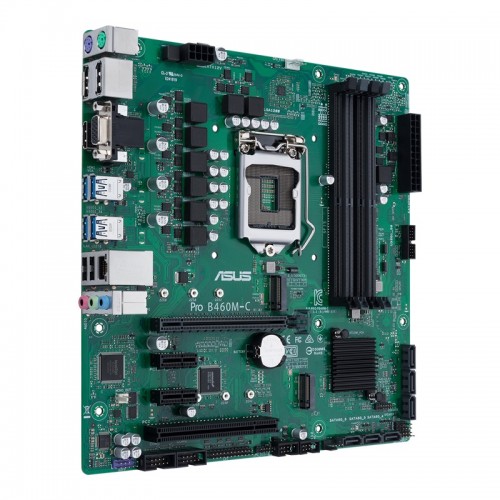

Basic Information
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B460 Chipset |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Graphics
| Graphics | Integrated Graphics Processor 2 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4b |
Memory
| Type | DDR4 |
| Slots | 4 x DIMM slots |
| Supported Memory | 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Maximum Memory | 128GB |
Expansion Slots
| PCI | 16-Lane CPU 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel B460 Chipset 2 x PCIe 3.0/2.0 x1 1 x PCI |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/ 2260/ 2280 storage devices support (x4 PCIE mode) |
Connector & Ports
| HDMI | 1 x HDMI 1.4b |

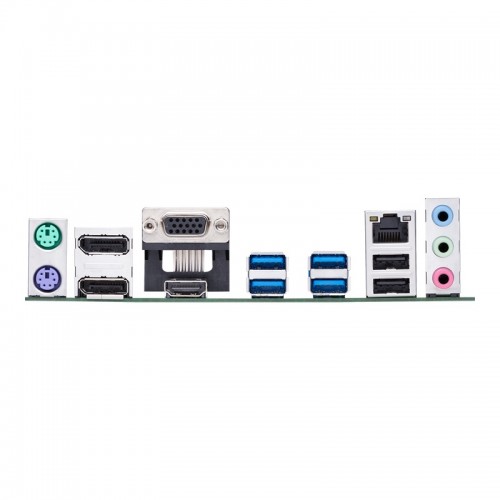

| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| LAN Port (s) | Intel I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/ 192kHz playback |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x MONO out header (with Amp IC) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x LPC Debug header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
Additional Info
| Others | Bespoke Motherboard Design & Business Focused Features : - Overcurrent Protection: Short circuit prevention, protects your system - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage |
Warranty Information
| Manufacturing Warranty | 03 Years Warranty |
