Basic Information
| Supported CPU | Supports Intel 11th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 10th Gen Core i9, i7, i5, i3 & Pentium Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 Supports Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z590 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX 30.5cm x 24.4cm |
| Audio | Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover |
CPU
| Chipset Brand | Intel |
| Chipset | Intel Z590 |
| Supported Sockets | LGA1200 |
Graphics
| Graphics | Graphics specifications may vary between CPU types. ** Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.Please refer to www.intel.com for any updates. |
Memory
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. |
| Maximum Memory | 128GB |
| Memory MHz | Up to 5333(OC) |
Storage
| Storage Interface | 6 x SATA 6Gb/s ports |
| SSD Expansion Slot | 4 x SSD Expansion Slot |
Expansion Slots
| PCI | 2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s) - Intel®10th Core™ processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** 1 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function. **PCIEX16_3 shares bandwidth with SATA6G_12 and SATA6G_34. When PCIEX16_ 3 is populated SATA6G_12 and SATA6G_34 will be disbabled. **When PCIEX16_3 run at default (x2) mode, SATA6G_34 is disabled. **When PCIEX16_3 run at x4 mode, SATA6G_12 and SATA6G_34 are disabled. |
| M.2 Socket | Intel®11th &10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280** - Intel® 11th Core™ processors support PCIe 4.0 x4 mode - Intel® 10th Core™ processors support PCIe 3.0 x4 mode Intel® Z590 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. **When M.2_4 is populated, SATA6G_56 will be disabled. **M.2_2 shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 is enabled, PCIEX16_1 will run at x8 mode and PCIEX16_2 will run at x4 mode. |
Connector & Ports
| HDMI | 1x HDMI 2.0 |

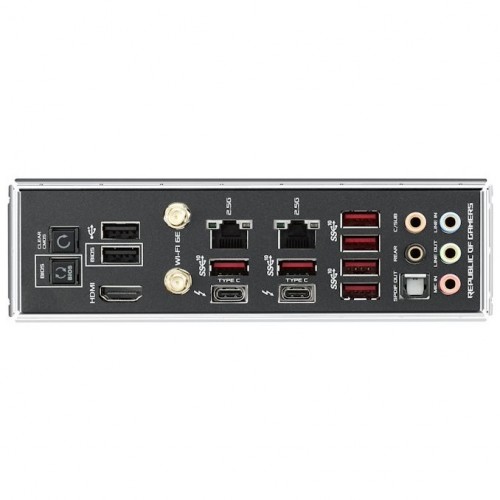

| USB (s) | Rear USB: Total 10 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| LAN Port (s) | 2 x Intel® 2.5Gb Ethernet |
| Audio | 5 x Gold-plated audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x 4-pin H_AMP Fan header(s) 1 x W_PUMP+ header(s) 1 x 2-pin Water In the header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
Network & Connectivity
| LAN Chipset | Intel |
| LAN Speed (Mbps) | Gigabit |
| WiFi | Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/ b/ g/ n/ ac/ ax) Supports 2.4/ 5GHz frequency band |
| WiFi Technology | 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Bluetooth v5.0 or later" |
Technical Info
| Form Factor | ATX 30.5cm x 24.4cm |
| Bios Type | 256 Mb Flash ROM |
| Bios Model | UEFI AMI BIOS |
Additional Info
| Others | Special Features Extreme OC Kit - FlexKey button - Retry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) ASUS HYDRANODE - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) * Visit ASUS Website for the latest compatibility list. ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger DAEMON Tools MyASUS WinRAR UEFI BIOS MemTest86 AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Accessories Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG key chain 1 x ROG Graphics card holder 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
Warranty Information
| Manufacturing Warranty | 03 Years |
