Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
Click to enlarge
Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard
ASUS

Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard

21,000.00৳

Key Features

  • Model: TUF Gaming Z590-Plus
  • Ready for 10th and 11th Intel Core Processors
  • Comprehensive cooling
  • Enhanced power solution
  • Two-way AI Noise Cancelation
Compare
Add to wishlist
Category:
Product Specifications
Basic Information
Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel Z590 Chipset
BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Graphics
Graphics1x DisplayPort 1.4
1x HDMITM 2.0
Memory
TypeDDR4
Slots4 x DIMM
Supported Memory5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory128GB
Expansion Slots
PCIIntel 11th & 10th Gen Processors
1 x PCIe 4.0/ 3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16
- Intel10th processors support PCIe 3.0 x16
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
M.2 SocketM.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)

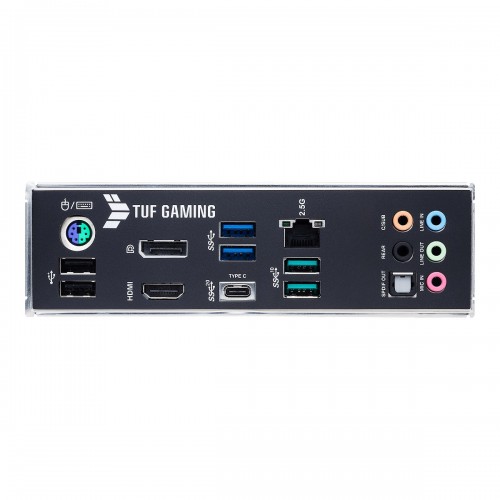

Connector & Ports
HDMI1x HDMI 2.0
USB (s)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)1 x Intel I225-V 2.5Gb Ethernet
TUF LANGuard
AudioRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover
Internal I/O PortsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Warranty Information
Manufacturing Warranty3 Years
Description

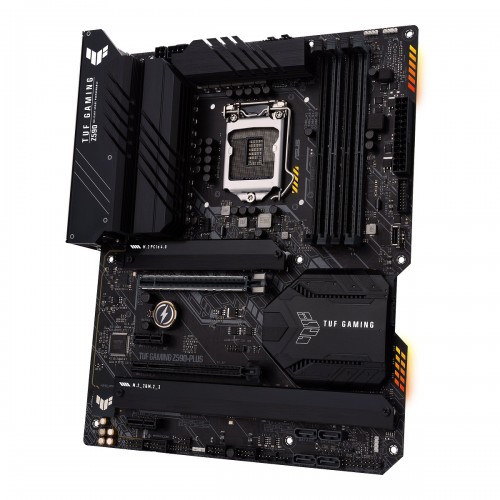

Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard

The Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, Asus TUF Gaming Z590-Plus Motherboard sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series. With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING Z590 series motherboards are the perfect foundation for your next high-core-count battle rig. The onboard VRM of TUF GAMING Z590 series motherboards utilize 14+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand. The extensive surface area of the large, high-mass heatsink covers the VRM and choke to improve heat dissipation. The total surface area of the VRM heatsink is 1.6X that of the previous generation. High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink. Each M.2 slot has a dedicated heatsink keep the M.2 SSDs at optimum operating temperature to ensure consistent performance and reliability. TUF GAMING Z590 series motherboards feature PCIe 4.0 M.2 and NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage to enjoy the fastest data-transfer speeds on the 11th Gen Intel Core processors. Extensive USB support ensures connections to a wide array of peripherals. Asus TUF Gaming Z590-Plus Motherboard includes USB 3.2 Gen 2×2 Type-C that deliver increased bandwidth and transmission speeds of up to 20 Gbps. TUF GAMING motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF GAMING Z590 series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.

What Are Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX MotherboardPrice In Bangladesh?

The latest price of the Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard is 21,000৳ in Bangladesh. Order online OR visit our showrooms to buy the Asus TUF Gaming Z590-Plus Intel 10th and 11th Gen ATX Motherboard at the best price in BD.
