Supported CPU |
Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU |
Chipset | Intel H310 Express Chipset |
BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
Audio |
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
Chipset Brand | Intel |
Chipset | Intel H310 |
Supported Sockets | LGA1151 |
Graphics | Integrated |
PCI Express Slot | 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slots |
Type | DDR4 |
Slots | 2 |
Supported Memory |
Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor. |
Maximum Memory | 32 GB |
Memory MHz | 2666/ 2400/ 2133 MHz |
Optane Memory Support | No |
Storage Interface | 6.0Gb/s |
SSD Expansion Slot | 1 x M.2 Socket 3 (M key, type 2260/2280 SATA and PCIe x2 SSD support) |
M.2 Socket | 1 |
HDMI |
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. |
USB (s) |

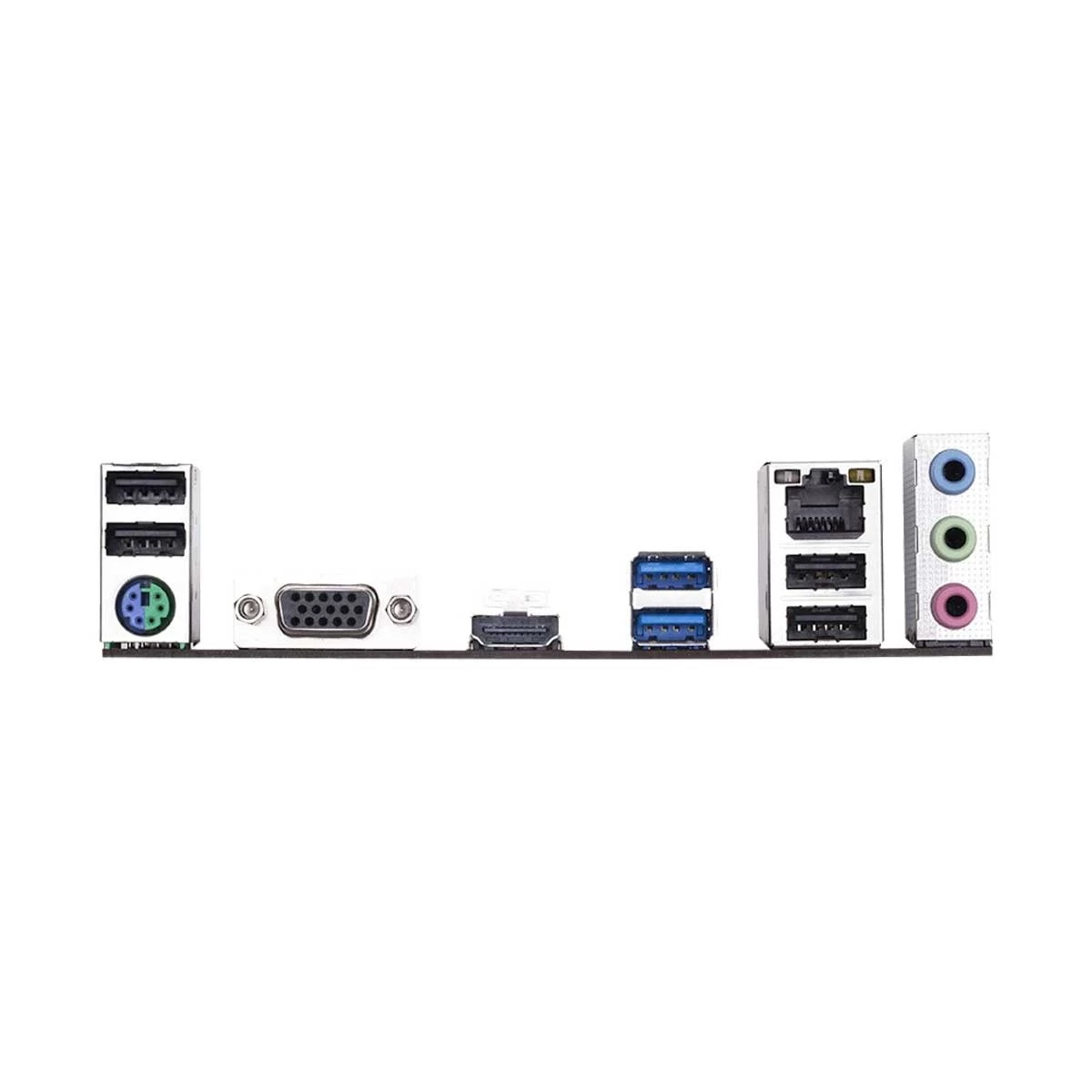

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
LAN Chipset | Realtek GbE LAN |
LAN Speed (Mbps) | 10/100/1000 |
WiFi | No |
WiFi Technology | No |
Bluetooth | No |
Country Of Origin | Taiwan |
Made In/ Assemble | China |
Others | 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header, 1 x Clear CMOS jumper, 3 x audio jacks |
Manufacturing Warranty | 3 Year |
